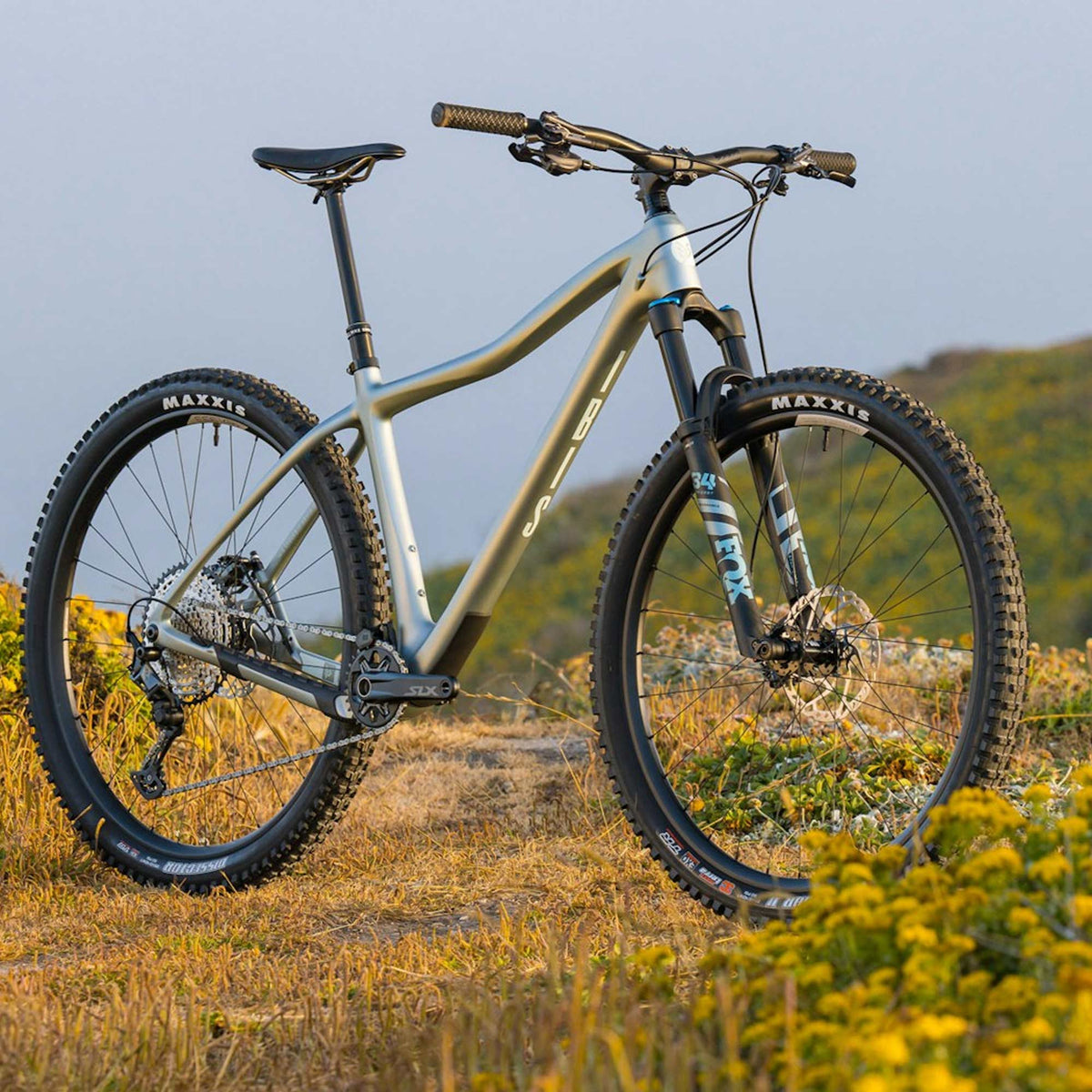

mountainbike ibis Ibis DV9

Design Details:

• The DV9 comes with a 120mm fork and is compatible with forks from 100 to 140mm travel.
• The head angle is now one-degree slacker at 66.5°.
• The new design has steepened the seat tube angle by 2-4 degrees, depending on size. Size-specific seat tube angles improve your fore-aft balance on the bike while reducing knee and wrist strain.
• The reach grew by 30mm on the medium and by 48mm on the large, bringing them to 435mm and 470mm, respectively.
• Ibis sloped the downtube to lower the standover by 53mm, dramatically improving the fit for smaller riders. Despite how compact the frame is, every size can run a long dropper and two water bottles.
• The chainstays have been shortened by 14mm, bringing them to an ultra-playful 425mm.
• There’s clearance for 2.6” tires, 203mm rotors, and 4-piston brakes.

• Other improvements to make life better: easy-to-use internal tube-in-tube cable routing, a drop-in headset, full coverage rubber chainstay protection, and a slick upper chain guide.

Ibis DV9 Deore Build Spec's:

• Fork: Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15
• Wheels: Ibis 933 Aluminum Rims, Ibis Hubs
• Tires: (F/R)    Maxxis DHR2 29" x 2.4" Exo TR / Maxxis Dissector 29" x 2.4" Exo TR (rear)
• Brakes: Shimano Deore M6100, 2 Piston
• Rotors (F/R): Shimano SM-RT66, 180mm
• Crankset    Shimano Deore M6120 24mm spindle, 30t Alloy Ring
• Bottom Bracket: Shimano SM BB52
• Rear Derailleur: Shimano Deore M6100, Shadow Plus
• Shifter: Shimano Deore M6100
• Cassette: Shimano Deore M6100, 10-51T
• Chain: KMC X12 Silver Chain
• Chain Guide: Ibis Top Guide
• Headset: Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
• Grips: Lizard Skin Charger
• Handlebar: Ibis Aluminum, 780mm
• Stem: Ibis 31.8mm - S/M: 40mm, L/XL: 50mm

• Seatpost: KS Rage-i Dropper - S: 125mm, M: 150mm, L/XL: 170mm

• Saddle: WTB Silverado, 142mm

Ibis DV9 SLX Build Spec's:

• Fork: Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15

• Wheels: Ibis 933 Aluminum Rims, Ibis Hubs

• Tires: (F/R)    Maxxis DHR2 29" x 2.4" Exo TR / Maxxis Dissector 29" x 2.4" Exo TR (rear)

• Brakes: Shimano SLX M7100

• Rotors (F/R): Shimano SM-RT66, 180mm

• Crankset: Shimano SLX M7120 24mm spindle

• Bottom Bracket: Shimano SLX BB52

• Rear Derailleur: Shimano SLX M7100 Shadow Plus

• Shifter: Shimano SLX M7100

• Cassette: Shimano SLX, 10-51T

• Chain: KMC X12 Silver Chain

• Chain Guide: Ibis Top Guide

• Headset; Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower

• Grips: Lizard Skin Charger

• Handlebar: Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)

• Stem: Ibis 31.8mm - S/M: 40mm, L/XL: 50mm

• Seatpost: Bike Yoke Revive Dropper - S: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.

• Saddle: WTB Silverado, 142mm
